Apartment And Hotel Domestic Sewage Treatment Plant,Domestic
Integrated Sewage Treatment Equipment For Hotel
Product Description

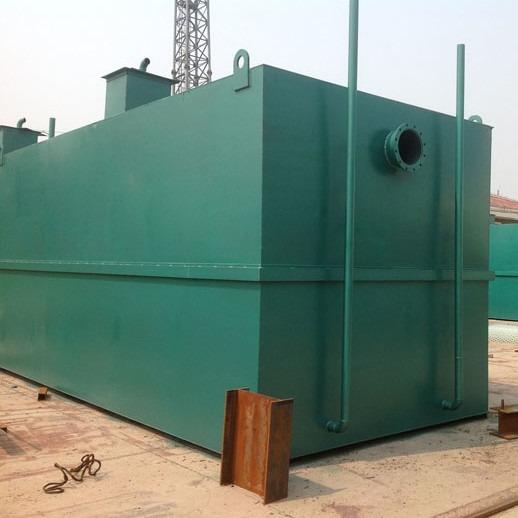

Apartment and hotel domestic sewage treatment plant is an underground plant which adopts the advanced Biological
technology and the company’s scientific research and engineering
practice result, it can effectively remove BOD5,COD and NH3-N. The
device is characterized by the stable performance, effective
treatment, economical investment, automatic operation, convenience
of maintenance and small occupying space. There is no need for
construction, neither heating and heat preservation.The surface can
be used as green land or square land.It also can be placed on
ground based on client's requirement.
As the most efficient sewage treatment device, it is widely used in
treating the sewage in the area of senior hotels, village districts
and residential districts, etc. The water after treatment would
meet the national emission standards. The water after be treated
can be used to irrigation.
Product advantages
1, Compact design, which is easy to transport.
2, Integrated device, no need construction, which is easy to be
installed.
3, Full Automatic machine, which is easy to operate and maintain.
4, Can be fixed on underground, which can save room and earth.
5, Don't need additional construction, the total cost is small.
Technical flow
Working principle:
1. Sewage first enters the grid pool, and the household garbage in
domestic sewage is first discharged through the grid.
2. Then enter the adjustment tank to adjust the water quality and
quantity
3. Then it is pumped into the anoxic tank by the lifting pump, and
the submersible mixer is arranged in the anoxic tank for
nitrification and denitrification.Combined with aerobic
denitrification and dephosphorization, large organic particles were
decomposed into small organic particles to improve the
biodegradability of wastewater.
4. Then the sewage flows into the aerobic pool for aerobic
biochemical reaction.The substance was degraded by biological
oxidation and the effluent flowed into the secondary sedimentation
tank for solid-liquid separation.The supernatant of the
sedimentation tank flows into the cleaning tank and kills harmful
bacteria in the water through ultraviolet disinfection equipment.
5. The sludge in the secondary sedimentation tank is returned to
the aerobic tank by sludge reflux pump, and the rest sludge is
self-precipitated to the sludge tank.The sludge in the sludge tank
is regularly dehydrated by the sludge dehydrator.The sludge
supernatant is returned to the conditioning tank by the mixed
liquid reflux pump for further treatment.
Technical data
| Model | QMDM-1 | QMDM-2 | QMDM-3 | QMDM-5 | QMDM-7 | QMDM-10 | QMDM-15 | QMDM-20 |
| Waste capacity | 1 | 2 | 3 | 5 | 7 | 10 | 15 | 20 |
| Blower | Air volume | 0.31 | 0.59 | 0.67 | 1.02 | 1.72 | 2.5 | 4.11 | 4.11 |
| Wind pressure | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 |
| Power | 0.55 | 0.75 | 1.5 | 1.5 | 2.2 | 3.7 | 5.5 | 5.5 |
| Water pump | Flow | 1 | 2 | 3 | 5 | 7 | 10 | 15 | 20 |
| Lift | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Power | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| The measure of area | 6 | 10 | 14 | 14 | 28 | 39 | 58 | 975 |
Note: we can design the different size based on the different water
capacity(m3/h),water quality(COD,BOD,SS)and different outlet water
standard.
Product application:
(1) treatment of suppuration in hotels, restaurants, nursing homes,
hospitals and schools;
(2) sewage treatment for residential areas, villas, villages and
towns;
(3) sewage treatment in railway stations, airports, ports and
wharves;
(4) festering treatment in factories, mines, troops and scenic
spots;
(5) all kinds of industrial sewage is similar to domestic sewage,
etc.
