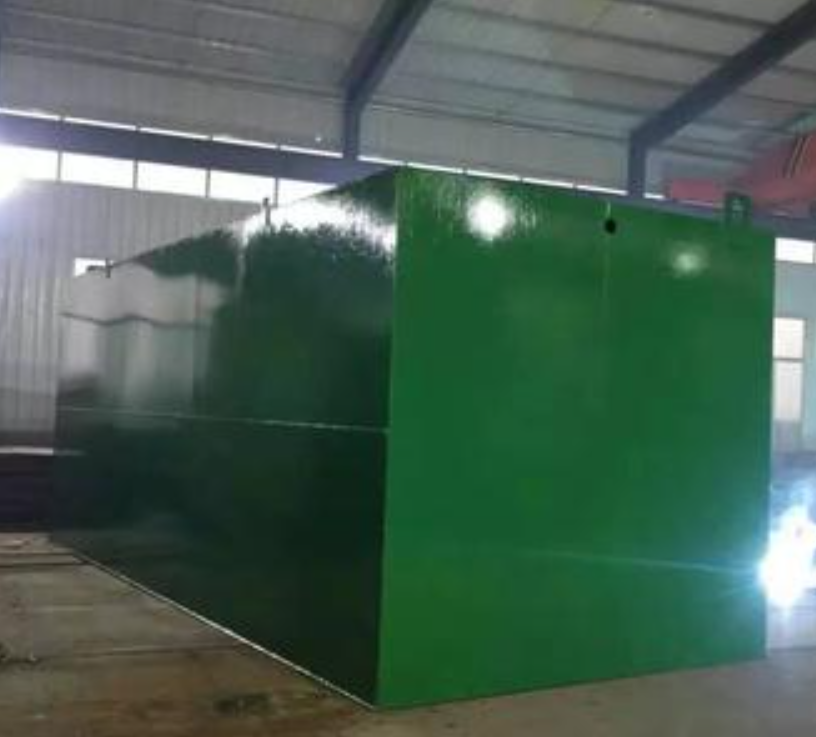

Multipurpose Underground Integration Sewage Treatment Equipment For
Factories
Product Description
1. The design of integrated sewage equipment is mainly aimed at the
treatment of domestic sewage and similar industrial organic sewage.
2. The main treatment method is to adopt a more mature biochemical
treatment technology-contact oxidation method, and the water
quality parameters are based on the general domestic water quality
standards.
3. The processing equipment does not need to build another house,
heating and heat preservation.
4. The equipment can also be placed in the ground, which not only
saves land area, but also plant greens on the ground above the
equipment to beautify the environment.
Features
1. The main equipment can be buried below the underground frozen
layer, and the surface above the main equipment can be used as
greening or other land, without building houses and heating
Insulation. According to the customer's requirements, the equipment
host can also be placed on the ground.
2. The two-stage biological contact oxidation process adopts push
flow biological contact oxidation, and its treatment effect is
better than that of complete mixing or two-stage series connection
3. Fully mixed biological contact oxidation tank. Compared with the
activated sludge tank, it has smaller volume, strong adaptability
to water quality, good impact load resistance and stable effluent
quality
4. No sludge bulking. New type of biological filler is used in the
tank, with large specific surface area, and microorganism is easy
to hang and remove the membrane, with the same organic load
5. Under the condition of high removal rate of organic matter, the
solubility of oxygen in air can be improved.
Advantages
1. Stable producting water quality for different inlet water.
2. Less sludge residue reduces cost for sludge treatment .
3. Low energy consumption, simple cleaning and low opreation cost
4. The structure is compact, occupies a small area, can be arranged
into the underground, the upper part of the equipment ball flowers
or construction
5. No impact on the surrounding environment, low sludge production,
low noise
6. New technology, good effect and long service life;
Application
It is suitable for the treatment and reuse of domestic sewage such
as residential quarters, villages, towns, office buildings,
shopping malls,；
hotels, restaurants, sanatoriums, organs, schools, troops,
hospitals, expressways, railways；
factories, mines, tourist attractions and similar medium and
small-scale industrial organic wastewater such as slaughtering,
aquatic products processing and food.
Product Model
| Model | DM-1 | DM-2 | DM-3 | DM-5 | DM-7 |
| Water capacity(m³/h) | 1 | 2 | 3 | 5 | 7 |
| Air Blower | Air volume(m³/min) | 0.31 | 0.59 | 0.67 | 1.02 | 1.72 |
| Wind pressure(m.MH2O) | 5000 | 5000 | 5000 | 5000 | 5000 |
| Power(kw) | 0.55 | 0.75 | 1.5 | 1.5 | 2.2 |
| Feeding pump | Flow(m³/h) | 1 | 2 | 3 | 5 | 7 |
| Lift(m) | 8 | 8 | 8 | 8 | 8 |
| Power(kw) | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 |
| The measure of area(m²) | 6 | 10 | 14 | 14 | 28 |
FAQ
Q:How to install after the equipments arriving destination?
A:We will provide detailed illustrations to you. If it is
necessary, we will send technicians to help you.
Q:How to buy your idea products?
A:You can provide us your sewage sources,sewage quality ( COD, BOD,
SS) , flow rate and ground area (connect us for more details).
Q:What is the delivery time?
A:It depends on order quantities. Generally speaking, the delivery
time will be within 4 to 6 weeks.
Q:How to pack the products?
A:We use standard package. If you have special package
requirements, we will pack as required, but the fees will be paid
by customers.
Q:How to keep your equipments from corrosion?
A:We use the world-famous paint, like epoxy-coal tar pitch etc.
What's more, we paint strictly according to the standard process.
