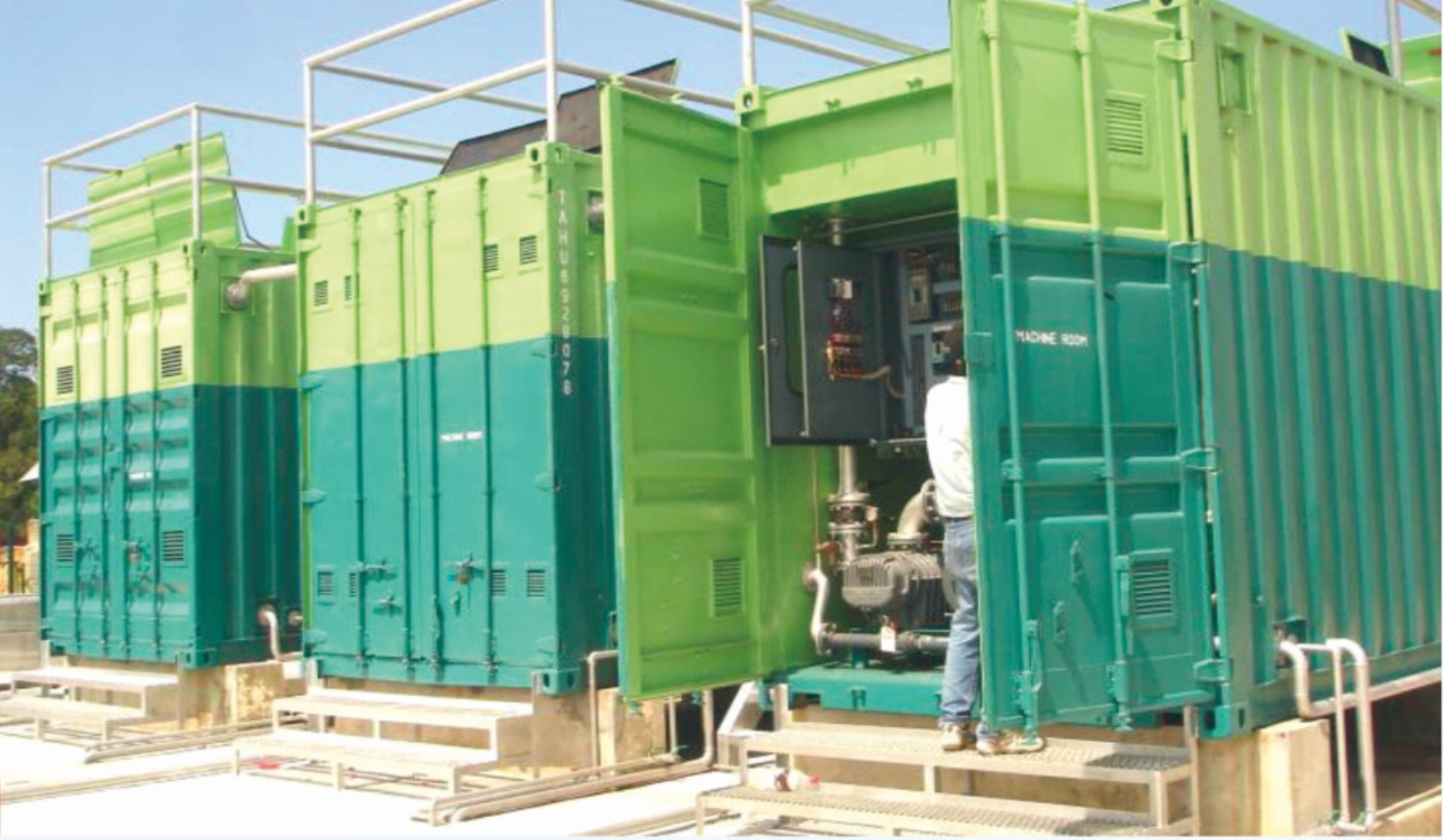

Mobile Wastewater Treatment Plant For Domestic Sewage Treatment
Process Core-MBBR
The moving bed biofilm reactor (MBBR), is a new type of
high-efficiency reactor between the activated sludge method and the
fixed biofilm method. The filler with a larger specific surface
area in the reactor moves freely in the water due to stirring, and
the sewage passes through the biofilm on the filler and the
activated sludge in the sewage, thereby purifying the sewage.
Advantages: high processing efficiency, strong denitrification ability, strong
impact resistance, simple operation control and simple maintenance.
Disadvantages: The process has poor phosphorus removal effect, requires uniform
aeration to prevent local filler accumulation, and needs to set up
grid plates to prevent fillers from losing with the treated water.
The input cost is higher than the activated sludge method (mainly
the filler cost).
MBBR-Based Process Improvement
The MSC-MBBR process is based on MBBR. By clarifying the functional
positioning of the pre-denitration zone, anaerobic zone, anoxic
zone and aerobic zone, the sludge return system and the layout
structure of the nitrification liquid return system are optimized
to reduce the activated sewage The advantages of mud method and
biological contact oxidation method are fully combined. While
reducing COD, it strengthens the effect of nitrogen and phosphorus
removal.
Under anoxic conditions, the pre-denitration zone fully removes nitrate and oxygen in the incoming sewage and
return sludge, ensuring a strict anaerobic environment in the
anaerobic zone, and greatly improving the efficiency of phosphorus
accumulating bacteria in the anaerobic zone. To ensure that its
phosphorus absorption efficiency in the aerobic tank has been fully
improved, the nitrification liquid is returned to the anoxic tank
to enhance the denitrification capacity of the reactor, and further
realize the efficient removal of nitrogen and phosphorus by the
MSC-MBBR integrated equipment.
MSC-MBBR and MBR process comparison
Process content | Tablet MBR | Hollow fiber MBR | MSC-MBBR |
| Regular flushing method | No need to raise, rinse in the pool | Need to be raised, rinse outside the pool | Not needed |
| Daily cleaning | Not needed | need | Not needed |
| Automation level requirements | high | high | low |
| Sludge production | Low, no need for thickening tank | High, still need thickening tank | Low, no need for thickening tank
|
| Water quality | Level A, reuse standard | Level A, reuse standard | Can reach level A stably |
| Service life of main components | Flat film 5 years | Hollow fiber membrane 3 years | Packing service life up to 30 years |
| Daily management | Moderate difficulty | High difficulty | simple |
| cost | Large initial investment, general operation and maintenance | The initial investment is large, the later operation and
maintenance are large | The initial investment is average, and the later operation and
maintenance are small |
Product advantages
1. Easy installation.
2.The treated water could be reused for irrigation, flushing, etc.
3. Short construction period with standardized production and
modular configuration.
4. Intelligent monitoring and control.
5. No secondary pollution production like surplus sludge, exhaust
gas and noise;
6. Stable performance, easy operation, easy maintenance.
7. Strong impulsion load resistance with stable operation effect.
Application scope
1. Hotels, restaurants, nursing homes, hospitals.
2. Residential areas, village, town.
3. Stations, airports, port terminals and ship.
4. Factories, mines, military, tourist, scenic.
5. All kinds of domestic sewage treatment .
